Configure an APM to work with the APM Gateway

  1. Connect the APM to your computer with a USB cable
  2. Open the APM configuration software and click Configure APM

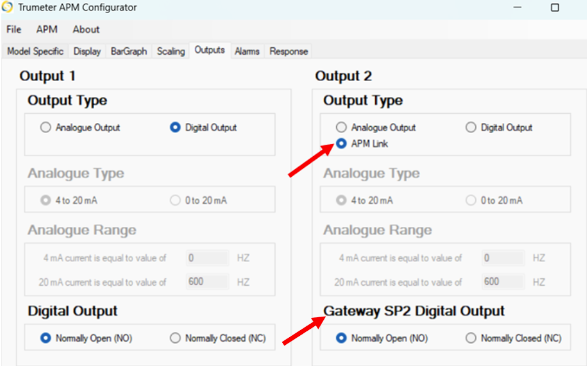

  3. Go to the Outputs tab
  4. For Output 1, select the following values:
    1. Output Type: Digital Output (used to report alarms and alerts to the cloud)
    2. Digital Output: Normally Open (NO)
  5. For Output 2, select the following values:
    1. Output Type: APM Link
      • When APM link is selected, you will notice that the output label changes to Gateway SP2 Digital Output.
    2. Gateway SP2 Digital Output: Normally Open (NO)

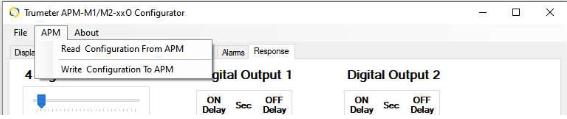

  1. Under the APM menu, select Write Configuration to APM

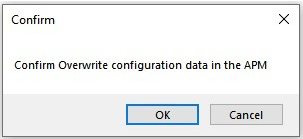

  1. When you receive the confirmation notice, select OK

Need a wiring visual? Click here to connect any standard APM to the APM Gateway using the APM Link.
