Wiring Diagram: APM Link Including Relay

Use the diagrams below to connect any standard APM to the APM Gateway using APM Link.


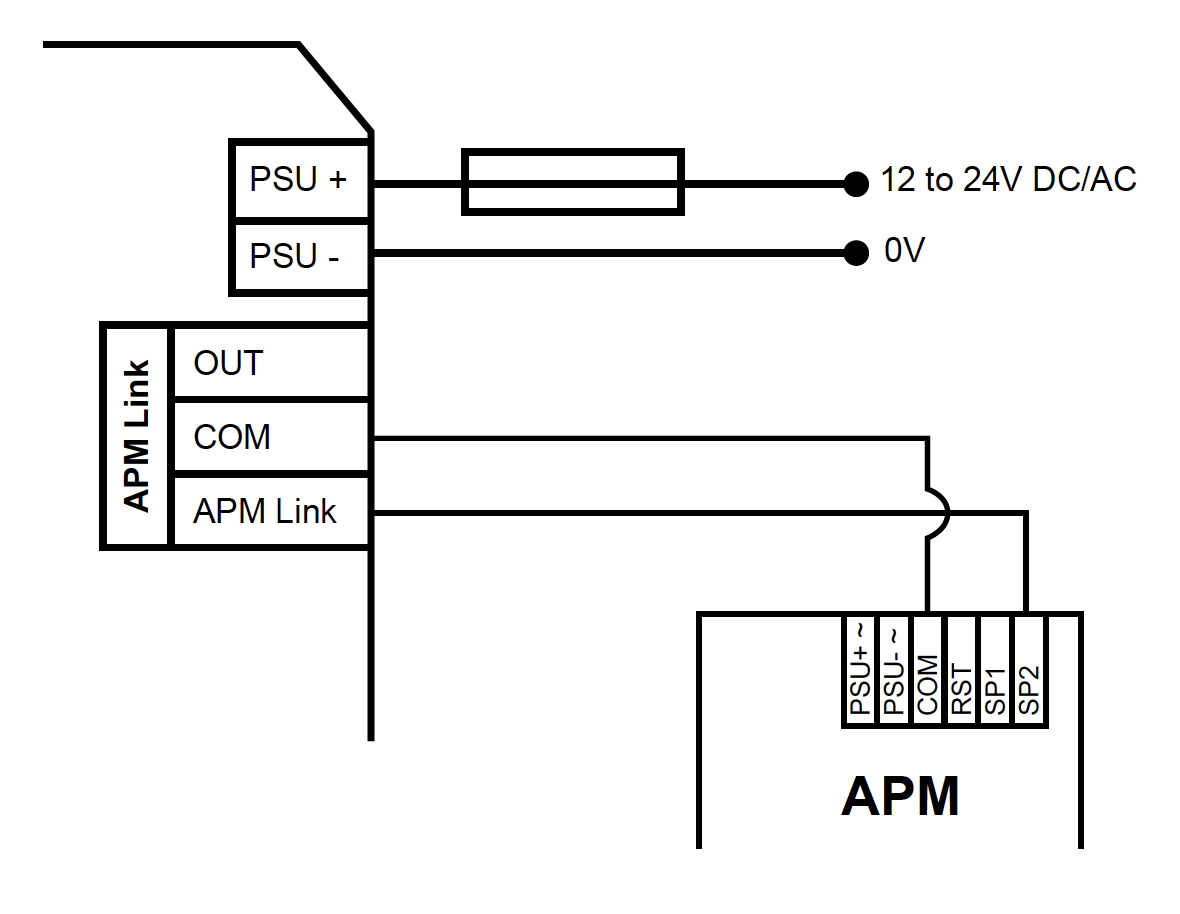

Wiring for APM Link

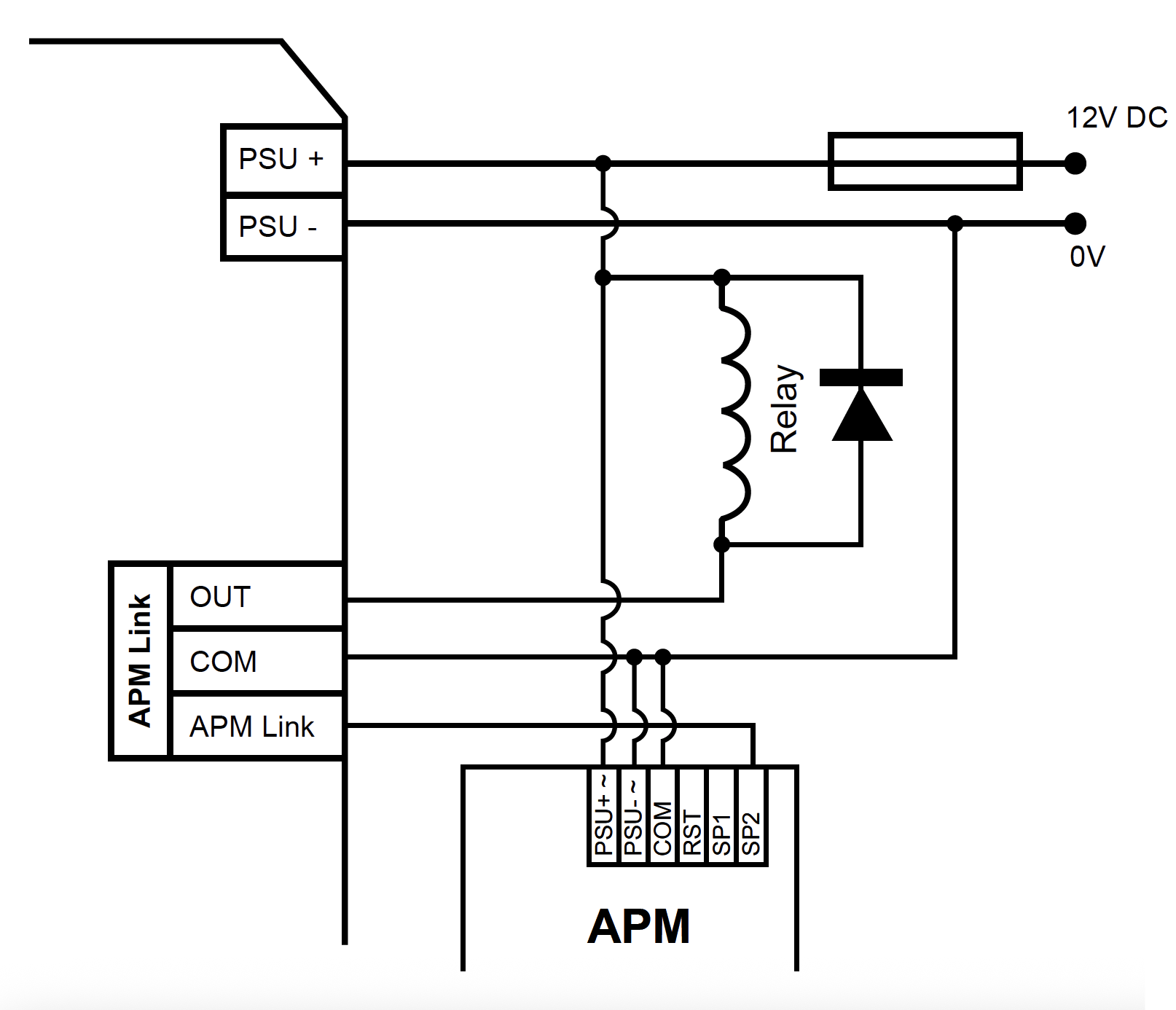

Connection of a Relay to Open Collector Output - Using DC PSU
