Configure APM Power Default Settings: Write, Read, Save & Load

Write the Configuration to the APM

Once you are finished with your configuration settings, you must write the program to the APM.

  1. Select APM and then Write Configuration to APM.
  2. You will receive a confirmation notice.
  3. Select OK

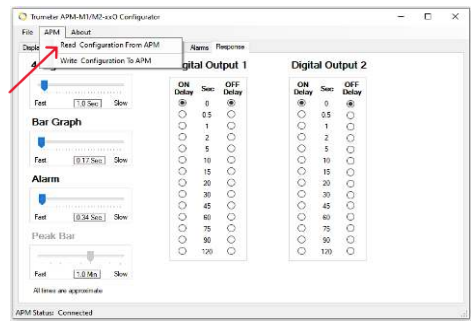

Read the Configuration of an Already Programmed APM

This is useful when you purchase the same type of APM, and you want the load the same configuration as your current APM.

  1. Connect the current APM.
  2. Select APM and then Read Configuration from APM
    1. This will read the configuration of the APM that you have plugged in.
    2. Plug in the new meter and follow step 1 above.

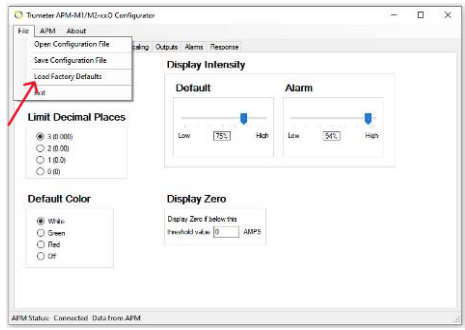

Open, Save and Load Factory Defaults

The APM configurator allows for the saving and opening of your custom configuration files.

  • Load Factory Defaults
