Configure Parameters Screen - APM Power
| Setting |
Function |
| Parameters |

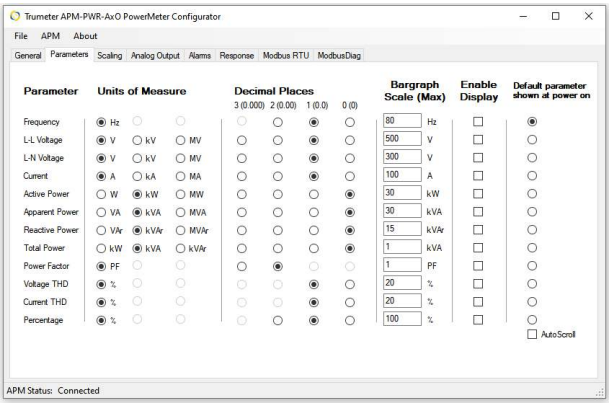

Frequency, L-L Voltage, L-N Voltag, Current, Active Power, Reactive Power, Total Power, Voltage THD, Current THD, Percentage |
| Units of Measure |
Select the unit of measure for the specified parameter. |
| Decimal Places |
You can select up to 3 decimals for each parameter that you want to view. |
| Display Intensity |
Set the display brightness when operating under normal conditions and during a preset Alarm condition. |
| Bargraph Scale (MAX) |
Enter the maximum value that you want to display for the specific parameter. |
| Enable Display |
Check the box of the parameters that you wish to view on the display. |
| Default parameter shown at power on |
- Check the circle to show the default parameter you wish to view when power is applied.
- Auto Scroll: If you check this box, the meter will scroll through the parameters selected in the Enable Display section every 5 seconds.
|
