Configure General Screen - APM Power

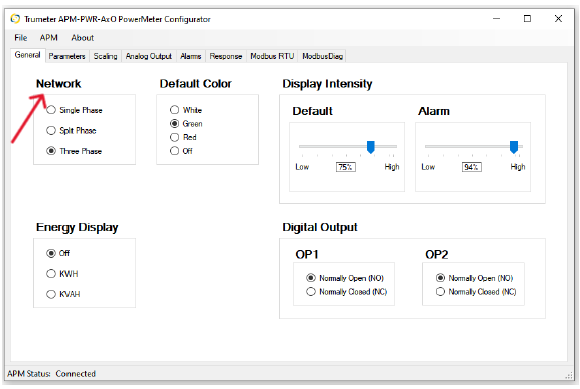

Network

Select the network type you wish to measure:

  • Single
  • Split
  • Three Phase

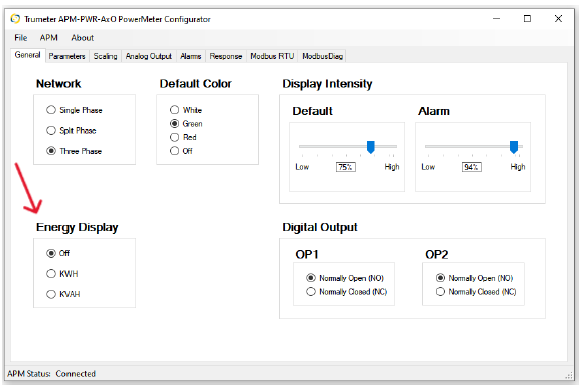

Energy Display

Turn on total KWH or KVAH to show on the bottom of the display:

  • Off
  • KWH
  • KVAH

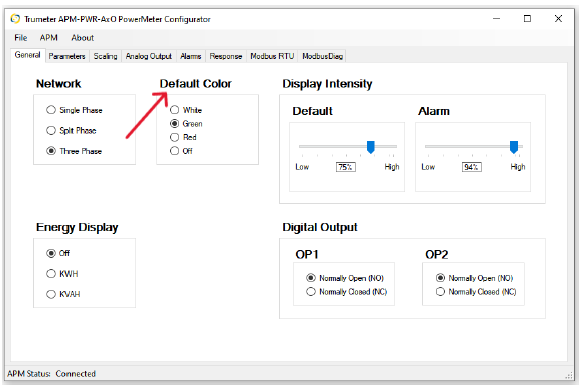

Default Color

Set the default background color of the display:

  • White
  • Green
  • Red
  • Off

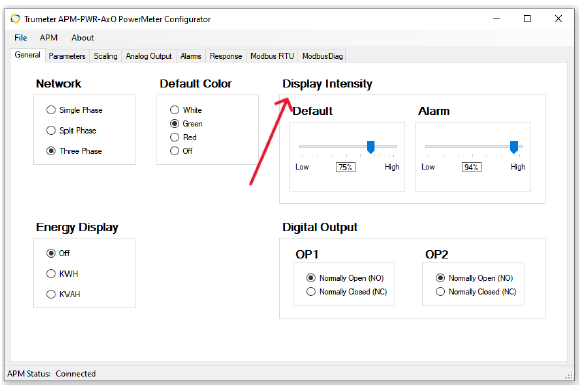

Display Intensity

Set the brightness of the display when operating under normal conditions and during a preset alarm condition.

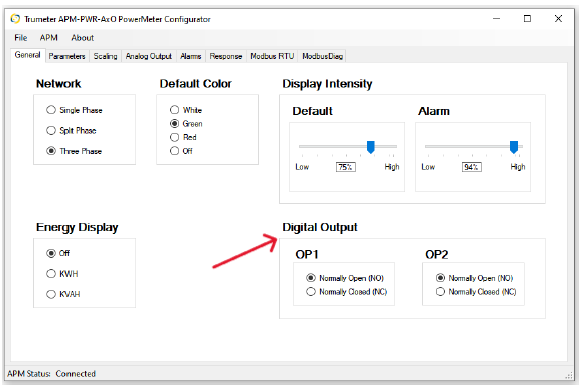

Digital Output – OP1 and OP2

  • Open Collector Transistor
  • The maximum current that the APM can sink is 500mA. The APM can therefore be connected to a load of up to 12W.
    • Please note that the maximum voltage that can be connected to the outputs is 24V.
  • This can be used to control a relay or buzzer.
  • You can set the digital outputs to be Normally Open (NO) or Normally Closed (NC).
