Configure Analog Output Screen - APM Power

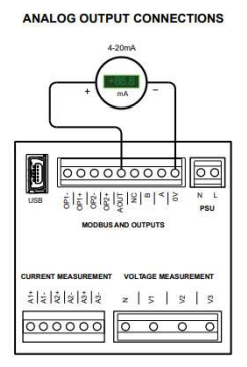

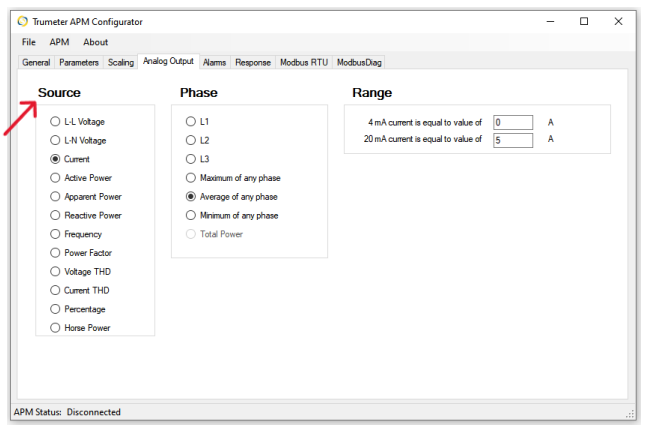

Source
Select the Source of the parameter that you would like to use for the 4-20mA output.

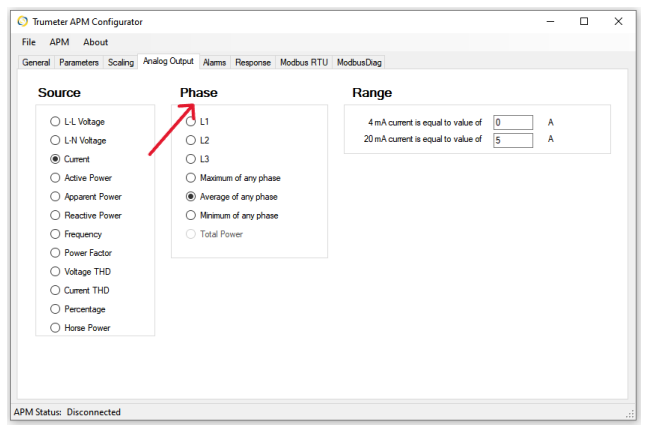

Phase
Choose the phase of the output parameter selected for the Source.

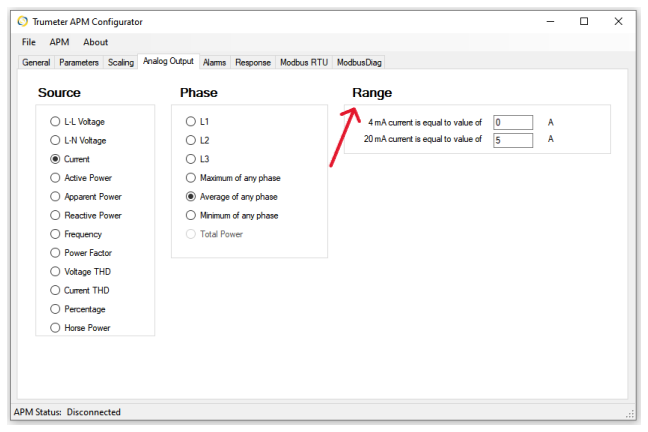

Range

Enter the value of the 4ma and 20mA range. i.e., if you select current and your amperage values are 0 – 25 Amps.

  • 4mA current is equal to value of 0 Amps
  • 20mA current is equal to value of 25 Amps
