Configure Alarms - APM Power

State

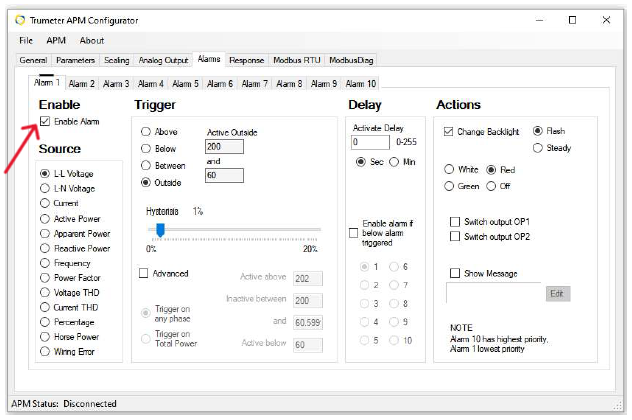

Select the Enable Alarm box to set up the alarm.

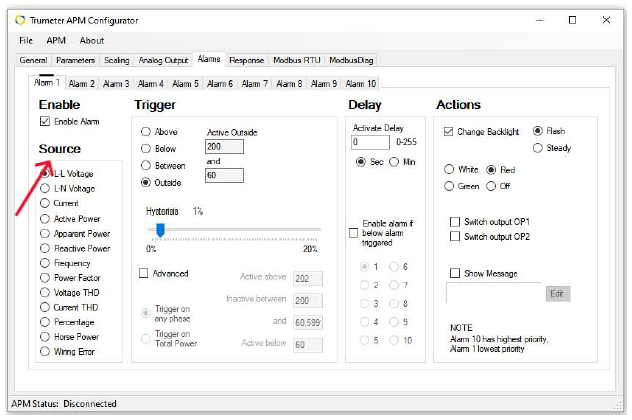

Source

Choose the Source that you will be using to activate the alarm.

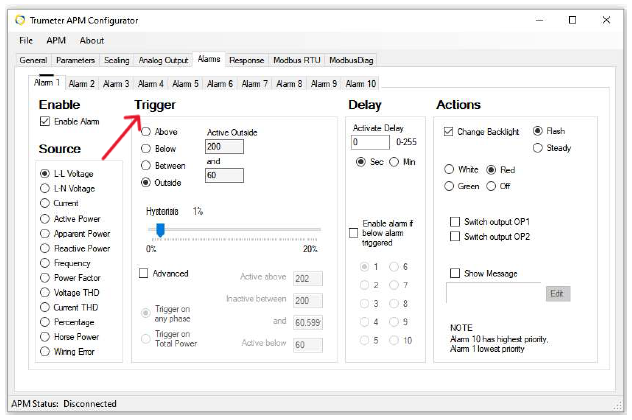

Trigger

Use this section to set up the measurement values to trigger the Alarm:

  • Above
  • Below
  • Between
  • Outside

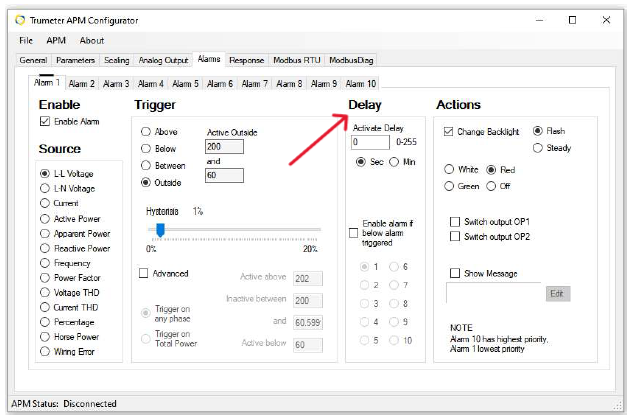

Delay

This can be used to delay the alarm in case you receive false readings, such as a current rush on startup.

  • Sec (0 – 255 seconds)
  • Min (0 – 255 minutes)



Note: Alarm 10 has the highest priority and Alarm 1 has the lowest priority.

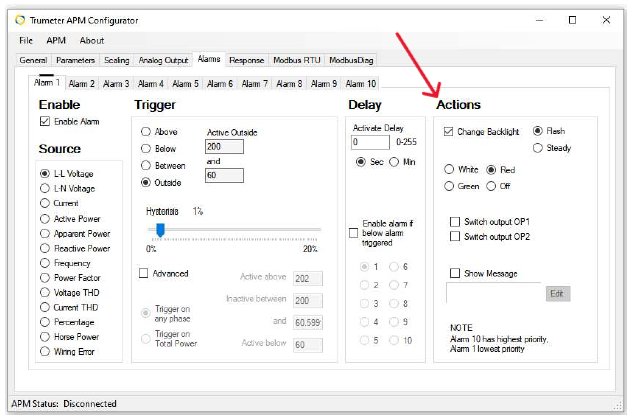

Actions

Change the backlight of the display on an Alarm:

  • Flash or Steady
  • Color
    • White, Red, Green or Off
  • Control Digital Output #1 or Digital Output #2
    • Switch from default setting (NO or NC).
  • Edit the Alarm Message (Image B)
    • This will be the message that shows on the display when the Alarm is active.

Image A

Image B
