Configure Default Settings: Write, Read, Save & Load

Once you are finished with your configuration settings, you will need to write the program to the APM:

1. Select APM

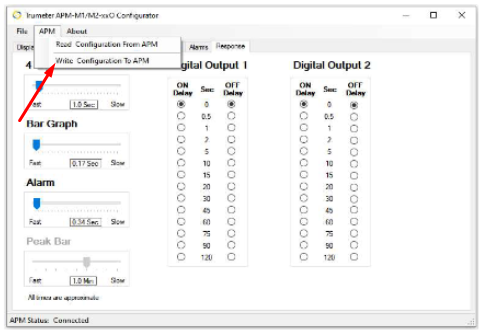

2. Select Write Configuration to APM (Image A)
3. You will receive a confirmation notice; select OK (Image B)

Image A

This is useful when you purchase the same type of APM and you want the load the same configuration as your current APM.

1. Connect the current APM.

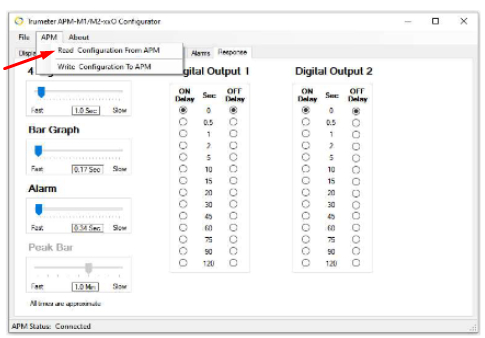

2. Select APM and then Read Configuration from APM
1. This will read the configuration of the APM that you have plugged in.
2. Connect the new meter and follow step 1 above.

The APM configurator allows for the saving and opening of your custom configuration files.

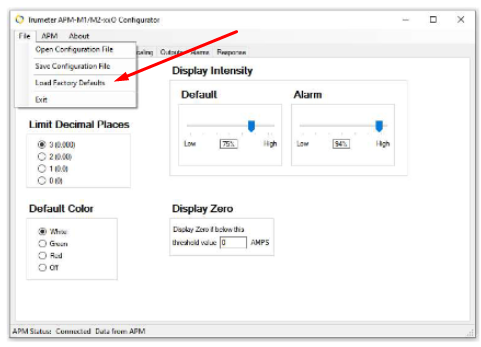

1. Select Load Factory Defaults
