Configure Display Screen


Each APM model has its own specific configurator screen with settings.

Displayed Message

Click on Edit to change the displayed message on your APM display.

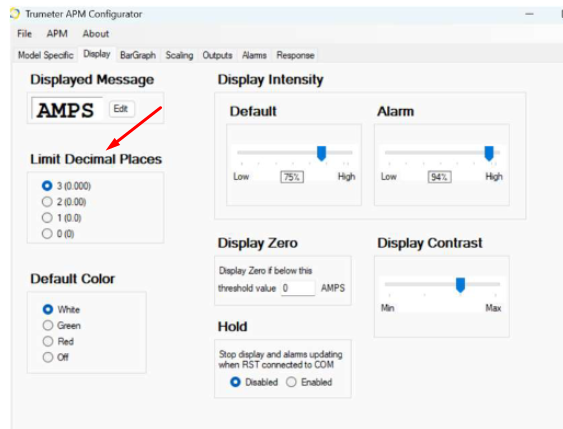

Limit Decimal Places

You can select up to 3 decimal places to show on the display.

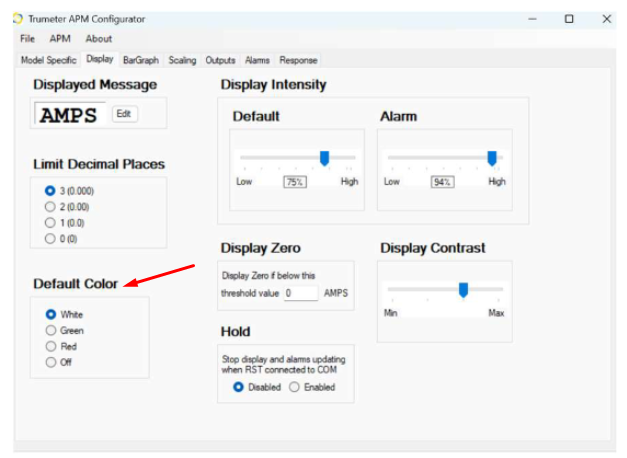

Default Color

You can change the default background color of the display (positive display) or the default color of the bar graph, value and displayed message. (negative display)

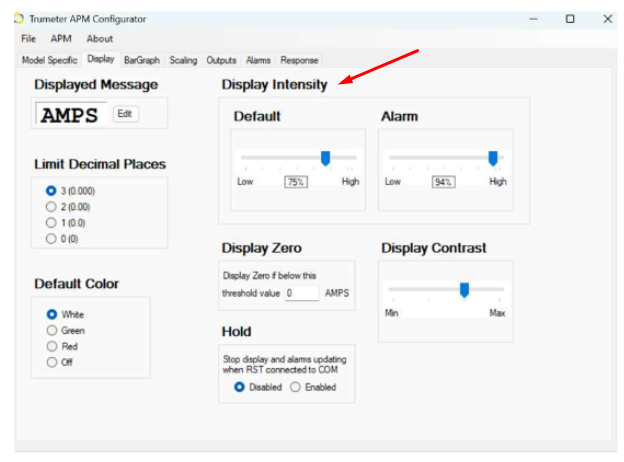

Display Intensity

Set the brightness of the display when operating under normal conditions and the brightness of the display during a preset Alarm condition.

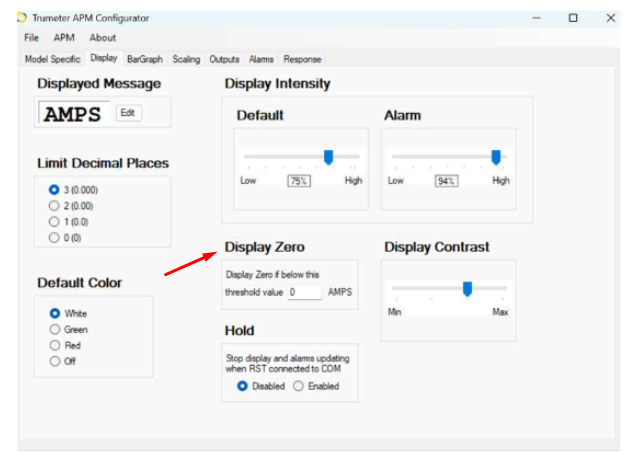

Display Zero

Use this setting if you have floating values when the device you are monitoring is turned off.

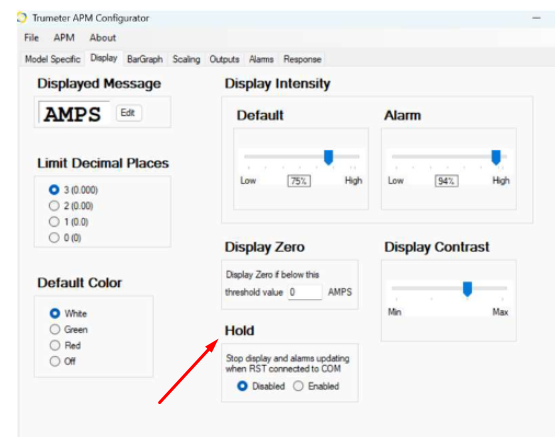

HOLD

The hold feature allows users to temporarily stop the display and alarms. This setting is particularly useful in welding environments, where users must wear welding helmets (hoods) and cannot see the voltage reading display while welding.
