Configure Alarms

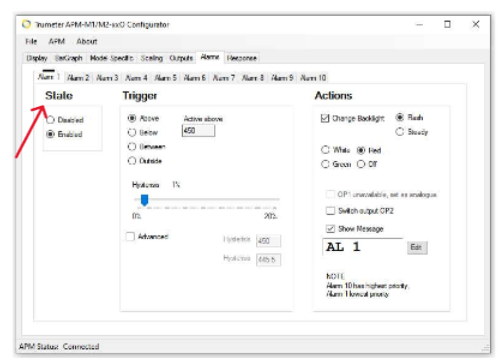

State

Select the Enable Alarm box to set up the alarm.




Trigger

Use this section to set up the measurement values to trigger the Alarm:

  • Above the value in the Active box
  • Below the value in the Active box
  • Between the value in the Active box
  • Outside the value in the Active box
  • Advanced
    • This gives you better control of the Alarm by providing more specifications and inputs for when the Alarm is Active and Inactive.


Actions

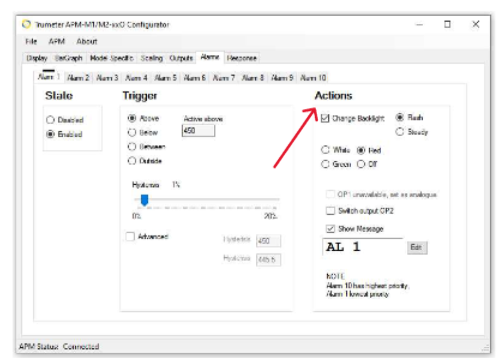

Here you can change the backlight options of the display on an Alarm: (Image A)

  • Flash or Steady
  • Color
    • White, Red, Green or Off
  • Control the Digital Output
    • Switch from default setting (NO or NC).
  • Edit the Alarm Message (Image B)
    • This will be the message that shows on the display when the Alarm is active.

Image A

Image B

Note: Alarm 10 has the highest priority and Alarm 1 has the lowest priority.
