Choosing The Right Textile Measurement Tool
Trumeter offers four series of textile measurement tools. This guide will help you decide which unit is the best fit for your operation.
Series |
Design |
Mounting |
Material Range |
Best For |
|---|---|---|---|---|

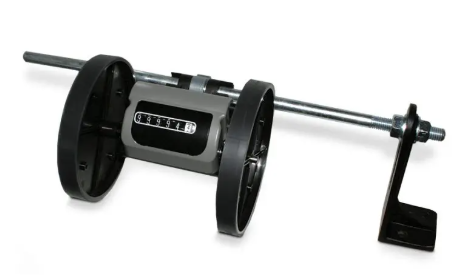

2300
|
Dual wheels |
Hinged bracket |
Heavy-duty: 6mm (0.24in) to 76mm (3.0in) |
Heavy fabrics, industrial textiles, carpet rolls |

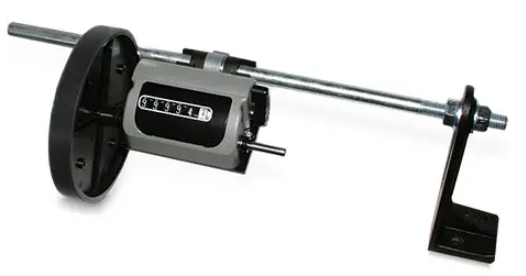

2401
|
Single wheel |
Stay rod (pivot) |
Heavy-duty: 6mm (0.24in) to 76mm (3.0in) |
Fabric inspection, smaller rolls |

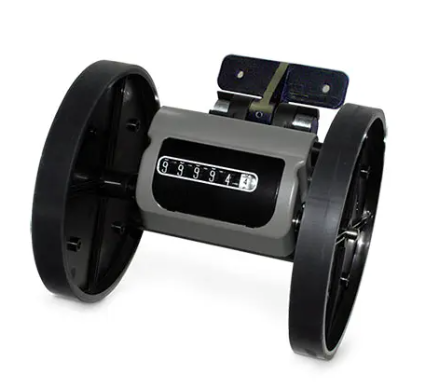

2701
|
Twin wheels |
Stay rod (pivot) |
Heavy-duty: 6mm (0.24in) to 76mm (3.0in) |
Technical textiles, continuous carpet production |

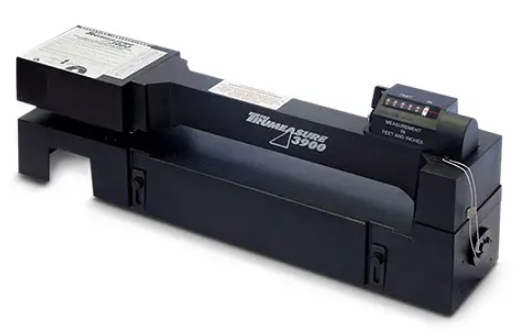

3900
|
Roller with spring-loaded pressure |
Flexible mounting |
Lighter materials up to 24mm (.945in) |
Fabric inspection, carpet rolls, films, papers |
